MicroFET4™ 捏握力计

•    将测量手的握力和捏力计量器组合在一个计量仪里
•    可以同时测量指捏力和手握力
•    LCD显示屏数据更易于读取
•    本测力计有五种不同的设置
•    可从电脑上拆卸下来单独使用或结合数据收集软件使用,更加快速有效,测量后可以重新连接电脑获取更加全面的文档数据.
•    可用于以下几类测试：

               握力最大值测试
               握力姿势测试
               快速交替握力测试
               握力疲乏度测试
               手指捏握力测试
               手掌握力测试
               指尖捏力测试

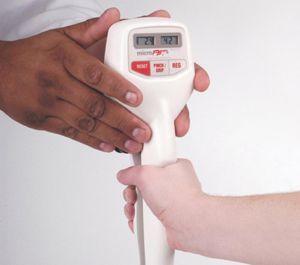

由 Hoggan Health 全新开发的 MicroFET4 捏握力测力计是目前市面上唯一实现将握力和捏力测量器组合在一起的测力仪器。MicroFET4 捏握力测力计根据目前所有捏握力相关研究成果精心设计，功能强大，性价比高。MicroFET4 捏握力测力计的质量和可靠性符合最高标准。

对于需要进行手部康复，上肢测试和老年护理的客户来说，MicroFET4 捏握测力计是多功能和高性价比的最佳选择。MicroFET4 捏握力测力计通过识别受伤或者疾病造成的手腕，手或者手指的损伤部位， 给出准确、客观和量化的检查结果。

MicroFET4 捏握测力计的产品规格

•    开创性地将握力和捏力的测量器组合在一起
•    产品的大小 3英寸 x 12英寸
•    重量小于1 磅
•    可设定两个阀值
•    低阀值 0.8 磅到 200 磅，每单位增量为0.2 磅 (3.6- 889 N， 单位增量为0.8 N)
•    高阀值 3 磅到200磅， 每单位增量为1 磅 ( 13-889 N, 单位增量为4 N)
•    LCD显示屏数据更易于读取
•    可用于测试范围： 握力最大值测试；握力姿势测试；快速交替握力测试；握力疲乏度测试；手指捏握力测试；手掌捏力测试和指尖捏力测试
•    1 年保修， 包括仪器零件替换和人工费用以及购买第1年度数值校准（ 可以延长保修期限，请联系 Ergobuyer 了解详细信息）
•    该产品正在申请专利
•    提供产品运行软件


MicroFET4套件包括：

•   MicroFET4
•   手动测试记录板
•   用户手册
•   协议手册
•   便携盒


可选的软件：
MicroFET 医学临床软件

•    从MicroFET4 测力器下载测试数据
•    自动进行计算和有效性检查
•    基于测量数据自动生成数据表和图表
•    创建具有高影响力的分析和对比报告
•    通过选定的测试或者整个协议选择临床医师
•    通过内置照片确定准确的测量和患者定位


数据收集／调查软件

•    通过数据收集软件可以简单方便地收集测试结果
•    在软件的屏幕上有测试的图表数据的实时显示
•    可设置开始和停止测试
•    测试文件自动保存为 .csv格式，以便于文件在被进一步分析时在任意一种电子表格或者分析软件中打开
•    数据收集软件可以在所有Hoggan MicroFET 或者 Ergo公司的产品中使用


MicroFET4 软件包括

•        软件CD
•        用户手册
•        接口电线
•        USB接口数据线



MICROFET4

MicroFET4™ Grip and Pinch Force Gauge (包括软件)

电邮询价

• Combination hand grip and pinch gauge in a single device
• Measures both individual finger grip and overall hand grip strength
• Easy to read LCD displays
• Pinch and Grip gauges each adjust to five different settings
• For stand-alone use or with data capture software; can be detached from computer for quick, portable tests then reattached for more thorough testing and documentation
• Performable tests:

            Maximum Grip Test
            Position Grip Test
            Rapid Exchange Grip Test
            Hand Grip Fatigue Test
            Key Pinch
            Palmar Pinch
            Tip Pinch

The innovative microFET4 Pinch & Grip gauge by Hoggan Health is the only combination hand dynamometer available in a single device. Designed in compliance with all major published research in grip and pinch protocols, the microFET4 is the highly versatile, cost ef. The microFET4 Pinch & Grip dynamometer meets the highest standard of quality and reliability.

The microFET4 is a highly versatile, cost-effective dynamometer for anyone involved in hand rehab, upper extremity testing, or geriatric care. The microFET4 Pinch & Grip provides accurate, objective and quantifiable results by identifying areas of weakness in the wrists, hands or fingers due to injury or disease.

Product Specifications for the microFET4 Pinch & Grip gauge

• Innovative design combines grip and pinch testing into one dynamometer
• Size 3" x 12"
• Weight less than 1 lb.
• Measures is Pounds or Newtons
• Two threshold settings
• Low threshold 0.8 lbs to 200 lbs. in 0.2 lb increments (3.6 - 889 Newton, 0.8 N increments)
  High threshold 3 lbs to 200 lbs. in 1 lb increments (13 - 889 Newton, 4N increments)
• Easy to read LCD displays
• Performable tests: Maximum Grip Test , 5 Position Grip Test , Rapid Exchange Grip Test, Hand Grip Fatigue Test, Key Pinch, Palmar Pinch and Tip Pinch
• One year warranty includes parts and labor plus 1st annual calibration (extended warranty is available, contact Ergobuyer for details)
• Patent Pending
• Optional software available

microFET4 Kit Includes:

•  microFET4
•  Manual test recording pad
•  User manual
•  Protocol Manual
•  Convenient carrying case


Optional Software

MicroFET Clinical Software

• Downloads test data from microFET4 dynamometer
• Automatically performs calculations and validity checks
• Generates tables & graphs from testing data
• Creates high-impact session and comparison reports
• Walks clinician through selected tests or entire protocols
• Built-in pictures demonstrate proper gauge and patient positioning

Data Collection/Research Software

• Easy to use data collection software to capture test results
• Real time graphical data displayed of test being performed on software screen
• Configurable start and stop test settings
• Test file saves as a .csv format allows for file to be opened in any spreadsheet or analytical software for further analysis
• Data collection software can be used with any Hoggan microFET or Ergo products

microFET4 Software includes

•  Software CD
•  User Manual
•  Interface Cable
•  USB converter cable



MICROFET4

MicroFET4™ Grip and Pinch Force Gauge (including software)
